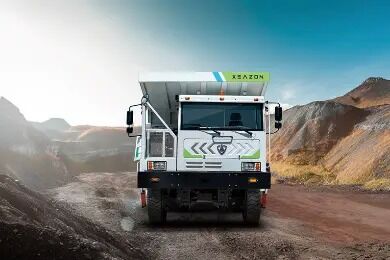

Electric Mining Truck with Long Drive Range Large Battery Capacity and Dual Motor Drive

Electric Mining Truck with Long Drive Range Large Battery Capacity and Dual Motor Drive

Long Drive Range Electric Mining Truck

Large Battery Capacity Electric Mining Truck

Dual Motor Drive Electric Mining Truck

Menşe yeri:

Çengdu, Çin

Marka adı:

ZEVAUTO

Sertifika:

ISO, CE

Model numarası:

XZ110EV

Bizimle İletişim
Bir teklif isteği
Ürün Detayları
Ürün adı:
Elektrikli Maden Kamyonu
Tip:
Sıfır emisyon
Fule tipi:
Elektrik
Boyutlar (mm):
9950*3750*4200
Dingil mesafesi (mm):
4500+1750mm
Bulaşma:
Hızlı 4 vitesli AMT Madencilik Kamyonu Şanzımanı. Geaer: 6.508-1.000
Maksimum Hız:
40km/s
askıya alma:
Ön oleo-pnömatik yay süspansiyonu + arka yaprak yay + güçlendirilmiş dengeli süspansiyon
Direksiyon:
Tam Hidrolik Direksiyon + Acil Durum Direksiyonu
Sürücü motoru:
Disk Hub Dual-Motor/Lego (İsteğe bağlı)
askıya alma sistemi:
Ön Hidro-Pnömatik Yay Süspansiyonu/Arka Yaprak Yay Dengesi Süspansiyon
Fren sistemi:
Elektrik Fren + Drum Freni, girdap akım geciktirici (isteğe bağlı)
Motorun nominal/tepe gücü (kW):
Disk Hub: 495/800; Lego: 500/800
Yorulmak:
16.00R25 Üç Yıldız Derecesi (Techking). Diğer lastik markaları mevcuttur.
Konteyner hacmi (m³):
42 (düz yükleme)/45 (Stowage yükleme)
Vurgulamak:

Long Drive Range Electric Mining Truck

,

Large Battery Capacity Electric Mining Truck

,

Dual Motor Drive Electric Mining Truck

Ödeme ve Gönderim Koşulları
Min sipariş miktarı
1
Ambalaj bilgileri
çıplak paketleme
Teslim süresi
25-40 iş günü
Ödeme koşulları
T/T,L/C
Yetenek temini
Yılda 25000 birim/
Ürün Açıklaması
Electric Mining Truck with Full Hydraulic Steering

Zero-emission electric mining truck featuring long drive range and large 528kWh battery capacity, designed for efficient and environmentally friendly mining operations.

Product Specifications
Attribute Value
Product name Electric Mining Truck
Type Zero Emission
Fuel type Electric
Dimensions (mm) 9950*3750*4200
Wheelbase (mm) 4500+1750
Transmission FAST 4-speed AMT mining truck transmission. Gear: 6.508-1.000
Max speed 40km/h
Suspension Front oleo-pneumatic spring suspension + Rear leaf spring + Reinforced balanced suspension
Steering Full hydraulic steering + emergency steering
Drive motor Disc hub dual-motor/Lego (optional)
Brake system Electric brake + drum brake, eddy current retarder (optional)
Motor rated/peak power (kW) Disk hub: 495/800; Lego: 500/800
Tire 16.00R25 three-star rating (Techking). Other brands available.
Container volume (m³) 42 (flat loading)/45 (stowage loading)
Model XZ95EV Technical Parameters
Vehicle dimension (mm) 9400*3750*4000
Minimum ground clearance 400mm
Battery Capacity 528kWh, LiFePo4
Power motor Dual motor 900K: 495kW/2000rpm/2380Nm
Electric Mining Truck with Long Drive Range Large Battery Capacity and Dual Motor Drive 0
Key Advantages
  • Zero emission environmentally friendly operation
  • 60-70% lower energy costs compared to diesel
  • Reduced maintenance requirements
  • Lower center of gravity improves stability on slopes
  • Meets EPA Tier 5/EU Stage V emissions standards
  • Safe and reliable operation with strong power output
  • High operation efficiency and comfortable driving experience
Customization Options

Electric mining truck configurations available to meet specific operational requirements.

About ZEV

Headquartered in Chengdu, Sichuan province, China, ZEV is a group company specializing in the development, production, sales and market application of buses and coaches. Since its foundation in 2006, ZEV's culture of continuous innovation has made it a leading manufacturer in China.

With two production plants and annual capacity of 25,000 units, ZEV offers a 5m-18m product lineup of battery electric buses and coaches. In 2022, ZEV was awarded 825 units of 12m full electric city buses for Chengdu Transport Cooperation, with 400 units serving during the 31st FISU World University Games.
